GC0308 Optical Image Sensor Camera Module 300000-Pixel USB Interface Wide-Angle Lens QR Code Recognition Product Category ICs
Détails sur le produit:
| Lieu d'origine: | Guangdong, Chine |
| Nom de marque: | Sinoseen |
Conditions de paiement et expédition:
| Quantité de commande min: | 5 |
|---|---|
| Prix: | $10-15 |
|
Détail Infomation |
|||
| Pixels effectifs: | 648 x 488 | Taille des pixels: | 3,4µm x 3,4µm |
|---|---|---|---|
| Taux de Max Frame: | 30 ips à 24 MHz, VGA | Alimentation: | 2,7 ~ 3,3 V, typique 2,8 V |
| Type d'interface: | Grande vitesse USB2.0 | Format de compression: | MJPG |
| Type d'obturation: | Obturateur global | Capteur d'image: | Capteur d'image CMOS VGA 1/6,5'' |
| Température de fonctionnement: | -30 ~ 80 ℃ | Température de stockage: | -10 ~ 60 ℃ |
| Consommation d'énergie: | TBD | Snr: | TBD |
| Courant d'obscurité: | TBD | Sensibilité: | TBD |
| Alimentation: | PUISSANCE D'AUTOBUS D'USB | ||
| Mettre en évidence: | GC0308 optical image sensor,USB camera module wide-angle,QR code recognition camera |
||
Description de produit

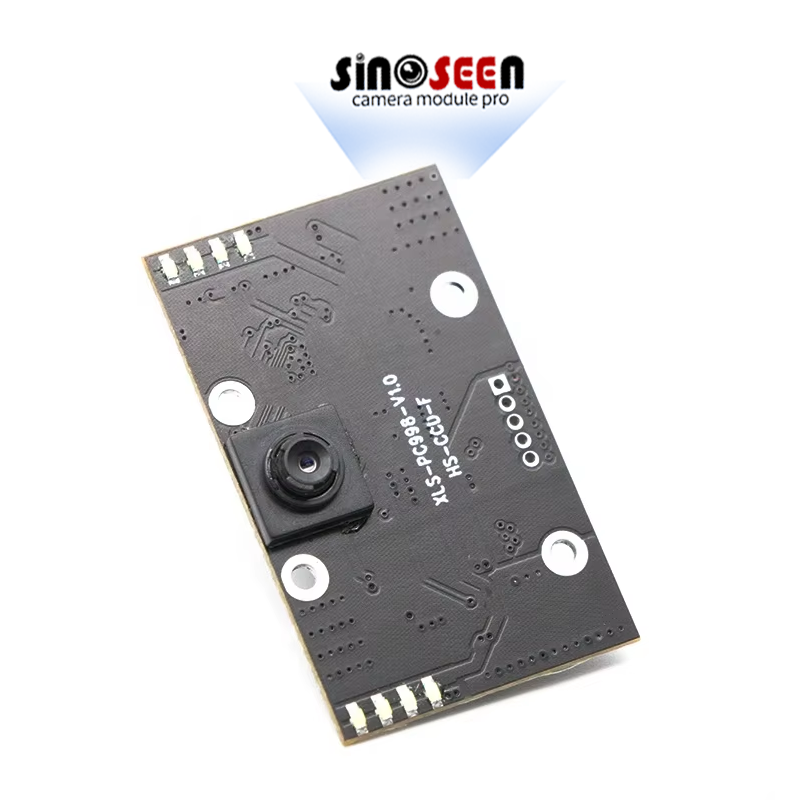

GC0308 Optical Image Sensor Camera Module
High-performance 0.3MP USB camera module featuring GC0308 sensor with 300,000-pixel resolution, wide-angle lens, and QR code recognition capabilities. Ideal for industrial imaging applications requiring reliable USB interface connectivity.
Product Overview
This newly developed USB camera module utilizes the GC0308 sensor to deliver versatile, cost-effective imaging solutions. The 1/6.5" sensor size provides excellent luminous flux, while 30fps performance at 648×488 resolution ensures smooth, clear video capture. Designed for high performance with low power consumption, this module supports various applications including access control systems, video doorbells, laptops, and face recognition technology.
Technical Specifications
| Model Number | SNS-PC998-V1.0 |
| Sensor Type | 1/6.5" VGA CMOS Image Sensor |
| Resolution | 0.3 Mega Pixel (648 × 488 effective pixels) |
| Pixel Size | 3.4µm × 3.4µm |
| Compression Format | MJPG |
| Shutter Type | Global Shutter |
| Maximum Frame Rate | 30fps @ 24MHz, VGA |
| Power Supply | 2.7V - 3.3V (typical 2.8V) |
| Interface | USB 2.0 High Speed |
| Adjustable Parameters | Brightness, Contrast, Color Saturation, Hue, Definition, White Balance |
| Power Consumption | USB Bus Power |
| Main Components | DSP, Sensor, Flash |
| Auto Controls | Auto Exposure Control (AEC), Auto White Balance (AEB), Auto Gain Control (AGC) |
| Operating Temperature | -30°C to 80°C |
| Storage Temperature | -10°C to 60°C |
| Supported OS | Windows XP/Vista/7/8/10, Linux (UVC), Mac OS X 10.4.8+, Android 4.0+ |
Key Features
- High-performance GC0308 optical image sensor
- 300,000-pixel resolution with wide-angle lens
- QR code recognition capability
- USB 2.0 high-speed interface
- Global shutter technology
- Low power consumption design
- Multiple adjustable image parameters
- Broad operating temperature range
- Cross-platform compatibility
Application Areas
This camera module is suitable for various industrial and commercial applications including access control equipment, all-in-one computers, video doorbells, laptops, face recognition systems, machine vision, intelligent systems, security solutions, IoT devices, VR applications, smart home solutions, UAV/drone cameras, and mobile imaging applications.
Customization Services
We offer comprehensive OEM/ODM customization services. Our engineering team works with clients to develop tailored camera solutions based on specific application requirements, structural constraints, performance targets, and cost considerations. Customization options include sensor selection, lens specifications, PCB design, and firmware optimization.
Product Images
About Shenzhen Sinoseen Technology
Established in 2009, Shenzhen Sinoseen Technology specializes in providing comprehensive OEM/ODM customized CMOS image processing solutions. Our services encompass design, development, manufacturing, and after-sales support. We deliver competitive pricing and quality across various camera module applications including USB cameras, mobile phone cameras, notebook cameras, security cameras, automotive cameras, and smart home imaging products.
Customization Available: Contact our technical team to discuss your specific application requirements and receive tailored camera module solutions optimized for your project needs.
