1080P 120fps Camera Module High-Speed IMX290 2mp
Détails sur le produit:
| Lieu d'origine: | Shenzhen, Chine |
| Nom de marque: | Sinoseen |
| Certification: | RoHS |
| Numéro de modèle: | SNS21799-V1. Je vous en prie.0 |
Conditions de paiement et expédition:
| Quantité de commande min: | 3 |
|---|---|
| Prix: | 10-100/negotiable |
| Détails d'emballage: | Plateau+Sac antistatique dans une boîte en carton |
| Délai de livraison: | 2-3 semaines |
| Conditions de paiement: | T/T |
| Capacité d'approvisionnement: | 500 000 pièces/mois |
|
Détail Infomation |
|||
| Taper: | module de caméra | Capteur: | 1/2.8" SONY IMX290 |
|---|---|---|---|
| Résolution: | 2MP 1920x1080 | Dimensions: | 38x38mm (personnalisable) |
| Champ de vision de lentille: | 120° (facultatif) | Type de mise au point: | Mise au point fixe |
| Interface: | USB | Fonctionnalité: | Vision nocturne |
| Mettre en évidence: | 1080P 120fps camera module,IMX290 2MP camera module,high-speed 2MP camera module |
||
Description de produit

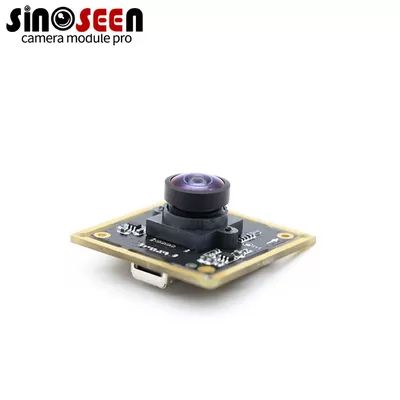

1080P 120fps Camera Module High-Speed IMX290 2mp
Product Description
High-Frame-Rate 1080P 120fps Camera Module for Dynamic Visual Capture
Product Introduction
The 1080p 120fps camera module featuring the Sony IMX290 STARVIS CMOS sensor delivers fluid 1080P resolution at an impressive 120 frames per second, tailored for applications necessitating high-speed motion analysis and low-latency video. This module incorporates advanced serial interfaces like USB 3.0 and MIPI CSI-2 to handle elevated data throughput up to 5 Gbps, ensuring uncompressed streams without frame drops. At Sinoseen, we craft this 1080p 120fps camera module with precision engineering to support seamless OEM integration, leveraging back-illuminated pixels for exceptional sensitivity in varied lighting conditions.
Sony Semiconductor data reveals the IMX290 supports dynamic ranges up to 88 dB, enabling 2x improved motion clarity at high frame rates compared to 60 fps modules, as benchmarked by the Imaging and Machine Vision Europe journal. For B2B developers pursuing high speed 1080p 120fps module innovations, this solution optimizes performance in fast-paced environments.
Product Advantages
- Ultra-Smooth Motion Rendering: 120 fps at 1080P captures rapid events with minimal blur, ideal for slow-motion analysis.
- Versatile High-Bandwidth Interfaces: USB 3.0 and MIPI CSI-2 ensure compatibility with modern SoCs for low-latency transfer.
- Low-Light Resilience: STARVIS technology provides 88 dB dynamic range, enhancing visibility in dim settings.
- Compact and Efficient Design: Slim profile with <1.5W power draw suits embedded and portable systems.
- Customizable for Precision: Adjustable lenses and firmware for tailored compact 1080p 120fps camera deployments.
Product Specifications
| Parameter | Value |
|---|---|
| Sensor | Sony IMX290 STARVIS CMOS, 1/2.8" format |
| Resolution | 1920x1080 (1080P, 1080p 120fps camera module) |
| Frame Rate | Up to 120 fps at 1080P |
| Interfaces | USB 3.0, MIPI CSI-2 (4-lane), DVP |
| Lens Mount | M12, 3.6mm focal length, F1.4 aperture |
| Field of View | 90° (diagonal) |
| Dynamic Range | 88 dB |
| Power Consumption | 3.3V DC, <1.5W |
| Operating Temperature | -30°C to +80°C |
| Dimensions | 32mm x 32mm x 15mm |
| Compliance | CE, FCC, RoHS |
Product Application Fields
- Slow-Motion Surveillance: Captures fast actions in security systems using 2MP high speed 1080p 120fps module for forensic analysis.
- Industrial Motion Tracking: Monitors machinery vibrations with precise high-frame-rate imaging.
- Automotive Testing: Records crash simulations and ADAS validation at elevated speeds.
- Sports Analytics: Analyzes athlete movements in training equipment.
- Drone Videography: Enables stabilized aerial footage with compact 1080p 120fps camera fluidity.
About Our Company
Sinoseen, a premier Chinese camera module manufacturer with over ten years of industry expertise, provides global clients with comprehensive visual application solutions. We specialize in OEM/ODM services for USB, MIPI, and DVP interface modules, backed by our dedicated technical and service teams. Our one-stop approach--from design to production--delivers industrial 1080p 120fps camera module innovations meeting ISO 9001 standards.
Customization Process
- Requirement Analysis: Evaluate needs for your 1080p 120fps camera module, focusing on frame rate and interface specs.
- Prototype Development: Build samples in 3-4 weeks for performance testing.
- Validation Testing: Assess motion clarity and latency in simulated conditions.
- Production Scaling: Ramp up with quality assurance at each phase.
- Integration Support: Provide SDKs and deployment optimization.
Total Cost of Ownership (TCO) Comparison
Sinoseen's 1080p 120fps camera module enhances TCO via high-speed efficiency and durability. The table contrasts against 60 fps modules:
| Category | Sinoseen 120fps Module | 60 fps Alternative |
|---|---|---|
| Motion Clarity | Superior (120 fps) | Limited (60 fps) |
| Integration Effort | Low (USB 3.0/MIPI) | Medium |
| Operational Reliability | High (88 dB DR) | Average |
| Supply Stability | Consistent (Localized) | Variable |
| TCO Impact | Optimized for high-speed use | Higher analysis costs |
Compliance Package and Supply Chain Security
Our compliance package encompasses CE for EU directives, FCC for U.S. emissions, and RoHS for eco-standards, accelerating certification for international projects. Sinoseen bolsters supply chain security with 92% China-based sourcing, navigating shortages as per a 2025 IDC report noting 60% of electronics firms affected by global disruptions. ISO 28000 protocols provide traceability, inviting B2B inquiries for volume partnerships.
Mass Production Risk Matrix and After-Sales KPI
Risks are scored on a 1-5 scale for likelihood and impact, with strategies like multi-sourcing mitigating bandwidth constraints (2/5 likelihood, 3/5 impact). After-sales KPIs include 95% response in 24 hours, 97% fulfillment accuracy, and bi-annual reviews. Shipments from China to overseas via express carriers ensure 7-14 day delivery, supporting B2B timelines.
| Risk | Likelihood (1-5) | Impact (1-5) | Mitigation |
|---|---|---|---|
| Data Throughput Issues | 2 | 3 | Interface optimization |
| Yield Fluctuations | 3 | 2 | QC enhancements |
| Standard Updates | 1 | 4 | Compliance tracking |
Frequently Asked Questions for Buyers
1. What enables the high speed 1080p 120fps module for motion capture?
The IMX290 sensor and USB 3.0 interface support 120 fps at full 1080P, minimizing blur for high speed 1080p 120fps module precision.
2. How fast is prototyping for compact 1080p 120fps cameras?
Samples ready in 3 weeks. Let's initiate your compact 1080p 120fps camera project with a customized quote.
3. Does the 2MP high speed 1080p 120fps module handle low light?
Yes, 88 dB dynamic range ensures clarity in 2MP high speed 1080p 120fps module at high rates.
4. What industrial uses suit the industrial 1080p 120fps camera module?
Motion analysis and quality control; adapt your industrial 1080p 120fps camera module for rugged needs.
5. How secure is supply for wholesale high speed 1080p modules?
92% local sourcing for reliability--inquire for high speed 1080p 120fps module bulk terms.
Industry Common Challenges and Solutions
- Challenge: Frame Drops at High FPS - Bandwidth overload.
Solution: USB 3.0/MIPI sustains 5 Gbps, eliminating drops for compact 1080p 120fps camera. - Challenge: Motion Blur in Fast Scenes - Reduced detail.
Solution: 120 fps with 88 dB DR captures sharp sequences, per IMVE benchmarks. - Challenge: Heat in High-Speed Modules - Thermal throttling.
Solution: <1.5W design operates stably up to 80°C. - Challenge: Yield in FPS-Optimized Production - Inconsistencies.
Solution: Automated lines yield 98% via SPC controls. - Challenge: Supply for High-Frame Sensors - Shortages.
Solution: Localized chain cuts 60% risks (IDC 2025).
Footnotes
1. USB 3.0: SuperSpeed standard enabling 5 Gbps for high-data video streams (USB-IF specifications).
2. Dynamic Range: Sensor's tonal reproduction span; 88 dB allows detailed low-light at high fps (Sony IMX290 datasheet).
1. USB 3.0: SuperSpeed standard enabling 5 Gbps for high-data video streams (USB-IF specifications).
2. Dynamic Range: Sensor's tonal reproduction span; 88 dB allows detailed low-light at high fps (Sony IMX290 datasheet).
Advance your high-speed imaging--contact Sinoseen for OEM 1080p 120fps camera module expertise and secure partnerships.
