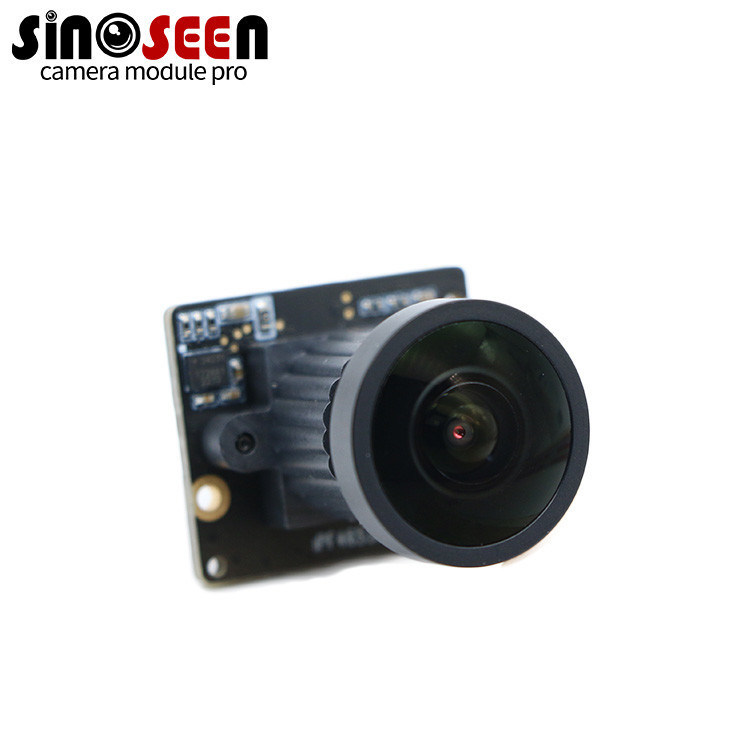

High Definition 4MP MIPI Camera Module with Wide Angle Lens for Industrial Vision and Surveillance Applications
Détails sur le produit:
| Lieu d'origine: | Shenzhen, Chine |
| Nom de marque: | Sinoseen |
| Certification: | RoHS |
| Numéro de modèle: | SNS-DZ1024-V1 |
Conditions de paiement et expédition:
| Quantité de commande min: | 1 |
|---|---|
| Prix: | 10-100USD、negotiable |
| Détails d'emballage: | Plateau + sac anti-statique dans la boîte en carton |
| Délai de livraison: | 2-3 semaines |
| Conditions de paiement: | T / t |
| Capacité d'approvisionnement: | 500000 pièces / mois |
|
Détail Infomation |
|||
| Taper: | module de la caméra 4mp | Capteur: | 1/3" 4Mega CMOS |
|---|---|---|---|
| Dimensions: | (personnalisable) | Type de mise au point: | Focus fixe |
| Interface: | Mipi | Fonctionnalité: | HD |
| Mettre en évidence: | 4MP MIPI camera module,wide angle MIPI camera,industrial vision camera module |
||
Description de produit
High Definition 4MP MIPI Camera Module with Wide Angle Lens for Industrial Vision and Surveillance Applications
Product Description
The 4MP wide-angle MIPI camera module offers 2592x1944 resolution with a 1/2.8-inch CMOS image sensor that captures vivid and detailed images. Its wide field of view enhances scene coverage, making it well-suited for industrial monitoring, security cameras, and smart systems.
It supports MIPI CSI-2 and USB2.0 interfaces, providing flexible connectivity and smooth data transmission for embedded vision systems. The module ensures reliable imaging even under dynamic lighting, with automatic exposure and color correction features.
Designed for stability and adaptability, this compact camera module integrates easily into custom vision solutions, helping deliver high-quality imaging performance in demanding environments.
Highlights
- 4MP CMOS sensor, 2592x1944 resolution for detailed imaging
- Wide-angle lens improves coverage and perspective
- Supports MIPI and USB2.0, compatible with various embedded platforms
- Automatic exposure and color control for consistent quality
Specification
| Model No | SNS-DZ1024-V1 |
|---|---|
| Sensor | 1/3''4Mega Cmos |
| Pixel | 4 Mega Pixel |
| Compression format | YUYV/MJPEG |
| Resolution & Frame rate | See above |
| Shutter Type | Electronic rolling shutter |
| Focus type | Fixed focus |
| Interface type | USB2.0 high speed |
| Adjustable parameter | Brightness/Contrast/Color saturation/Hue Definition/White balance/Exposure |
| Power supply | mipi |
| Main chip | DSP/SENSOR/FLASH |
| Auto Exposure Control | Support |
| Auto White Balance | Support |
| Auto Gain Control | Support |
| Support OS | WinXP/Vista/Win7/Win8/Win10 Linux with UVC(above linux-2.6.26) MAC-OS X 10.4.8 or later Android 4.0 or above with UVC |
Shenzhen Sinoseen Technology Co.,Ltd
China top 10 camera module manufacturer
We customize all kinds of USB/MIPI/DVP camera module as per your request
China top 10 camera module manufacturer
We customize all kinds of USB/MIPI/DVP camera module as per your request
Current available USB solution
0.3MP
Low cost: BF3703 BF2103 GC0329 GC0309 GC0307 GC032A OV7675
Big size: GC0308(1/6.5") GC0328(1/6.5") GC0403(1/3"-0.4MP) BF3A03(1/6.5")
Global shutter: OV7251 (1/7.5",B/W)
High frame rate: 200FPS SC031GS(1/6",B/W)
Big size with high frame rate: OV7725(1/4",60FPS),OV7740(1/5",60FPS)
Low cost: BF3703 BF2103 GC0329 GC0309 GC0307 GC032A OV7675
Big size: GC0308(1/6.5") GC0328(1/6.5") GC0403(1/3"-0.4MP) BF3A03(1/6.5")
Global shutter: OV7251 (1/7.5",B/W)
High frame rate: 200FPS SC031GS(1/6",B/W)
Big size with high frame rate: OV7725(1/4",60FPS),OV7740(1/5",60FPS)
1MP
Low cost: GC1024 GC1034 GC1064(H264) H42 H62 SP1405 OV9712 OV9732 NT99141 SC1245 OV9760
Small size for endoscope: OV9734 GC1009 HM1091
Global shutter: OV9281(1/4",B/W) OV9782(1/4",color) AR0144(1/4",color) AR0135(1/3",color)
Big size (30FPS): AR0130(1/3",B/W) OV10635(1/2.7",color,WDR,960P) H65(1/3",color,960P)
Low cost: GC1024 GC1034 GC1064(H264) H42 H62 SP1405 OV9712 OV9732 NT99141 SC1245 OV9760
Small size for endoscope: OV9734 GC1009 HM1091
Global shutter: OV9281(1/4",B/W) OV9782(1/4",color) AR0144(1/4",color) AR0135(1/3",color)
Big size (30FPS): AR0130(1/3",B/W) OV10635(1/2.7",color,WDR,960P) H65(1/3",color,960P)
2MP
Normal(10FPS): GC2145(1/5") BF2206(1/5")GC2335 OV2643 HM2056 BF3925 OV2755(1/5" HD)
1080P low cost: F23 F37 F35 SP2305 GC2053 GC2023 AR0330(300W) SC2232H C2390 IMX322 C2395 SC2315 AR0237
1080P small size (30FPS): OV2732(1/4") OV2740(1/4") OV2722(1/6") SC2145(1/4") HM2160(1/6")
1080P@60FPS: OV2710 HM2131 IMX307 C2395 SC2315 F35 SC2310
1080P-HDR (30FPS): OV2735 OV2718 PS5268 IMX307
1080P-WDR (30FPS): AR0230 AR0331(300W)
1080P-Starvis (30FPS): IMX291 IMX307 IMX323 IM290
1080P big size: IMX385
1080P global shutter: OG02B10(color) OG02B1B(B/W)
Normal(10FPS): GC2145(1/5") BF2206(1/5")GC2335 OV2643 HM2056 BF3925 OV2755(1/5" HD)
1080P low cost: F23 F37 F35 SP2305 GC2053 GC2023 AR0330(300W) SC2232H C2390 IMX322 C2395 SC2315 AR0237
1080P small size (30FPS): OV2732(1/4") OV2740(1/4") OV2722(1/6") SC2145(1/4") HM2160(1/6")
1080P@60FPS: OV2710 HM2131 IMX307 C2395 SC2315 F35 SC2310
1080P-HDR (30FPS): OV2735 OV2718 PS5268 IMX307
1080P-WDR (30FPS): AR0230 AR0331(300W)
1080P-Starvis (30FPS): IMX291 IMX307 IMX323 IM290
1080P big size: IMX385
1080P global shutter: OG02B10(color) OG02B1B(B/W)
5MP
500W (15FPS): OV5648 GC5025 OV5640 OV5643 OV5693(up to 30FPS) 4EC OV5650
FHD 500W(30FPS): OS05A10 PS5520 HM5532 MI5100 MT9P001 IMX335 SC5335 AR0521 JXK05 OV4689(2K,1/3")
500W (15FPS): OV5648 GC5025 OV5640 OV5643 OV5693(up to 30FPS) 4EC OV5650
FHD 500W(30FPS): OS05A10 PS5520 HM5532 MI5100 MT9P001 IMX335 SC5335 AR0521 JXK05 OV4689(2K,1/3")
8MP
800W (15FPS): IMX219(1/4")S5K3H7 IMX179 C8390
8M-4K UHD (30FPS): IMX317 IMX415 OS08A10(big size 1/1.8")
800W (15FPS): IMX219(1/4")S5K3H7 IMX179 C8390
8M-4K UHD (30FPS): IMX317 IMX415 OS08A10(big size 1/1.8")
13MP-16MP
IMX214(13M) IMX258(13M) IMMX298(16M)
IMX214(13M) IMX258(13M) IMMX298(16M)
USB3.0
IMX335 OV5648 IMX179 IMX307 PS5268
IMX335 OV5648 IMX179 IMX307 PS5268
H264
GC1064 OV2710 OV2735 OV9732 AR0130 AR0230 AR0330 H65 H62 IMX291 IMX322 IMX323 OV2718 OV2732
GC1064 OV2710 OV2735 OV9732 AR0130 AR0230 AR0330 H65 H62 IMX291 IMX322 IMX323 OV2718 OV2732
