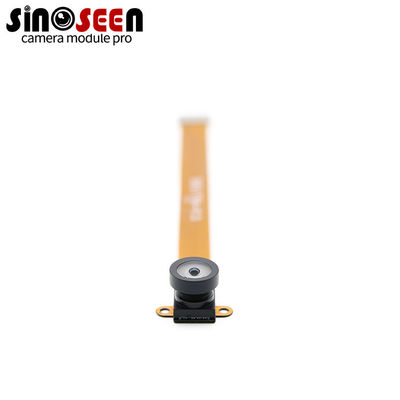

1MP OV9282 MIPI Camera Module with 1280x800 Resolution and Global Shutter for Embedded Vision
Détails sur le produit:
| Lieu d'origine: | Shenzhen, Chine |
| Nom de marque: | Sinoseen |
| Certification: | RoHS |
| Numéro de modèle: | SNS11784-V1. Je vous en prie.0 |
Conditions de paiement et expédition:
| Quantité de commande min: | 5 |
|---|---|
| Prix: | 10-100USD、negotiable |
| Détails d'emballage: | Plateau + sac anti-statique dans la boîte en carton |
| Délai de livraison: | 2-3 semaines |
| Conditions de paiement: | T / t |
| Capacité d'approvisionnement: | 500000 pièces / mois |
|
Détail Infomation |
|||
| Taper: | module de caméra | Capteur: | Le CMOS de 1/4" Omnivision OV9282 |
|---|---|---|---|
| Résolution: | 1MP 1280 (H) X 800 (V) | Dimensions: | Personnalisable |
| Champ de vision de lentille: | 60° (facultatif) | Type de mise au point: | Focus fixe |
| Interface: | Mipi | Fonctionnalité: | Obturateur mondial |
| Mettre en évidence: | 1MP OV9282 MIPI camera module,1280x800 resolution camera module,global shutter camera module for embedded vision |
||
Description de produit
1MP OV9282 MIPI Camera Module with 1280x800 Resolution and Global Shutter for Embedded Vision
Product Description
The 1MP OV9282 MIPI camera module features a 1/4-inch CMOS image sensor with a resolution of 1280*800 pixels, designed for clear and consistent imaging in embedded and industrial applications. Its global shutter technology ensures precise image capture of fast-moving subjects without motion blur, making it ideal for machine vision, robotics, and gesture recognition.
Equipped with a MIPI CSI-2 interface, it provides fast and reliable data transfer, compatible with popular SBCs such as Raspberry Pi, Jetson, and other embedded platforms. The compact design supports easy integration into small devices and space-limited systems.
Offering excellent dynamic range (68dB), low noise, and consistent color accuracy, this module delivers stable performance across a variety of lighting conditions.
Highlights
- 1MP OV9282 color CMOS sensor, 1280*800 resolution
- Global shutter eliminates motion distortion
- MIPI CSI-2 interface for high-speed transmission
- Compact size, easy integration for embedded devices
- Ideal for machine vision, robotics, and smart sensing
Specification
| Model No | SNS11784-V1.0 |
|---|---|
| Sensor | 1/4" Omnivision OV9282 CMOS |
| Pixel | 1 Mega Pixel |
| Most effective pixels | 1280(H) x 800(V) |
| Pixel Size | 3.0µm x 3.0µm |
| Image area | 3896um(H) x 2453um (V) |
| Compression format | MJPG / YUY2 |
| Shutter Type | Global Shutter |
| Chroma | B&W, Monochrome |
| Focus type | Fixed focus |
| S/N ratio | 38dB |
| Dynamic range | 68dB |
| Dark current | 80e-/sec |
| Interface type | mipi |
| Adjustable parameter | Brightness/Contrast/Color saturation/Hue/Definition/Gamma/White balance/Exposure |
| Lens |
Focal length: 3.6mm Lens Size: 1/4 inch FOV: 60° Thread Size: M12*P0.5 |
| Audio frequency | Optional |
| Power supply | USB BUS POWER |
| Power consumption | DC 5V, 180mW |
| Main chip | DSP/SENSOR/FLASH |
| Auto Exposure Control | Support |
| Auto White Balance | Support |
| Auto Gain Control | Support |
| Dimension | Customizable |
| Storage temperature | -20°C to 70°C |
| Operating temperature | 0°C to 60°C |
| USB cable length | Default |
| Support OS |
WinXP/Vista/Win7/Win8/Win10 Linux with UVC(above linux-2.6.26) MAC-OS X 10.4.8 or later Android 4.0 or above with UVC |
Shenzhen Sinoseen Technology Co.,Ltd
China top 10 camera module manufacturer
We customize all kinds of USB/MIPI/DVP camera module as per your request
Current available global shutter USB camera module
Omnivision - OV7251 - 0.3MP - Monochrome(black and white)
Omnivision - OV9281 - 1MP - Monochrome(black and white)
ON Semiconductor - AR0144 - 1MP - Monochrome(black and white) or RGB color
Omnivision - OG02B1B - 2MP - Monochrome(black and white)
Omnivision - OG02B10 - 2MP - RGB color
