Sony IMX179 8MP USB2.0 Camera Module | 15fps Industrial and Embedded Vision Solution
Détails sur le produit:
| Lieu d'origine: | Shenzhen, Chine |
| Nom de marque: | Sinoseen |
| Certification: | RoHS |
| Numéro de modèle: | SNS-8MP-IMX179-bbx |
Conditions de paiement et expédition:
| Quantité de commande min: | 200 |
|---|---|
| Prix: | négociable |
| Détails d'emballage: | Plateau + sac anti-statique dans la boîte en carton |
| Délai de livraison: | 2-3 semaines |
| Conditions de paiement: | T / t |
| Capacité d'approvisionnement: | 500000 pièces / mois |
|
Détail Infomation |
|||
| Taper: | Module de caméra de 8 MP | Capteur: | 1/3.2" IMX179 |
|---|---|---|---|
| Résolution: | 8MP3264 (H) X 2448 (V) | Dimensions: | (personnalisable) |
| Champ de vision de lentille: | 100° (facultatif) | Type de mise au point: | Focus fixe |
| Interface: | USB2.0 | Fonctionnalité: | 4K |
| Mettre en évidence: | Sony IMX179 USB camera module,8MP industrial camera module,USB2.0 embedded vision solution |
||
Description de produit
Sony IMX179 8MP USB2.0 Camera Module | 15fps Industrial and Embedded Vision Solution
Product Description

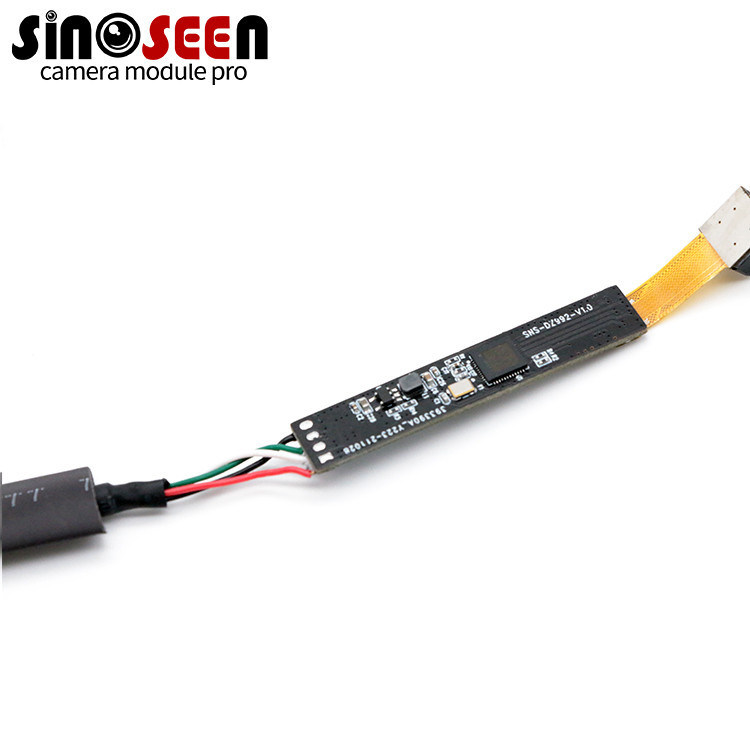

The Sinoseen 8MP USB2.0 camera module, equipped with the Sony IMX179 sensor, is engineered for high-precision imaging in industrial and embedded vision systems. It provides 3264 *2448 resolution at 15 frames per second, ensuring clear and consistent image capture with USB2.0 connectivity.
With its low power consumption and high sensitivity, this camera maintains excellent image quality in both bright and dim conditions. The 1/3.2-inch CMOS sensor and fixed-focus M12 lens minimize distortion and deliver sharp, natural images suitable for industrial monitoring and AI visual recognition.
Supporting MJPG/YUY2 video formats, the module allows easy adjustment of exposure, white balance, brightness, and saturation. It works seamlessly across Windows, Linux, macOS, and Android (UVC) systems, enabling fast deployment in various embedded and vision-based projects.
This IMX179 camera module offers engineers and developers a reliable, plug-and-play imaging solution for automation, inspection, and multimedia device integration.
Highlights
- 8MP Sony IMX179 CMOS sensor with 3264*2448 resolution
- 15fps frame rate over stable USB2.0 interface
- Low power, high sensitivity for clear low-light imaging
- Compact module ideal for embedded and industrial systems
Specification
| Model No | SNS-8MP-IMX179-bbx |
|---|---|
| Sensor | 1/3.2'' IMX179 |
| Pixel | 8 Mega Pixel |
| Most effective pixels | 3264(H) x 2448(V) |
| Pixel Size | 1.4µm x 1.4µm |
| Compression format | MJPG / YUY2 |
| Shutter Type | Electronic rolling shutter |
| Focus type | Fixed focus |
| S/N ratio | 36dB |
| Dynamic range | 60dB |
| Interface type | USB2.0 |
| Adjustable parameter | Brightness/Contrast/Color saturation/Hue/Definition/Gamma/White balance/Exposure |
| Lens |
Focal length: 3.6mm Lens Size: 1/3 inch FOV: 95° (Optional) Thread Size: M12*P0.5 |
| Audio frequency | Support |
| microphone | Built-in |
| Power supply | USB BUS POWER |
| Power consumption | DC 5V, 200mA |
| Main chip | DSP/SENSOR/FLASH |
| Auto Exposure Control (AEC) | Support |
| Auto White Balance (AEB) | Support |
| Auto Gain Control (AGC) | Not Supported |
| Dimension | 90MM x 15MM (customizable) |
| Storage temperature | -20°C to 70°C |
| Operating temperature | 0°C to 60°C |
| USB cable length | Default |
| Support OS |
WinXP/Vista/Win7/Win8/Win10 Linux with UVC(above linux-2.6.26) MAC-OS X 10.4.8 or later Android 4.0 or above with UVC |
