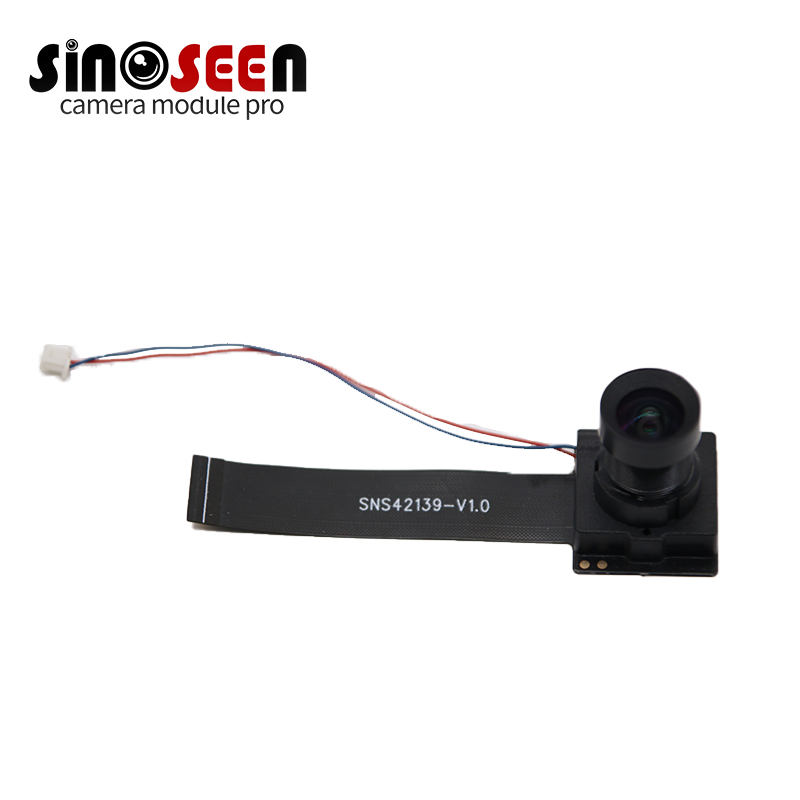

SC450AI MIPI Camera Module 4MP 2688x1520 IR Enhanced
Détails sur le produit:
| Place of Origin: | China |
| Nom de marque: | Sinoseen |
| Certification: | RoHS、ISO9001、CE |
| Model Number: | SNS42139-V1.0 |
Conditions de paiement et expédition:
| Minimum Order Quantity: | 5 |
|---|---|
| Prix: | 10-100USD or negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3week |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Détail Infomation |
|||
| Type:: | MIPI Camera Module | Sensor: | SC450AI |
|---|---|---|---|
| Resolution: | 2688 × 1520 | Dimensions: | (compatible With 32mmx32mm) |
| Mettre en évidence: | MIPI camera module 4MP resolution,infrared enhanced MIPI camera,2688x1520 MIPI camera module |
||
Description de produit
SC450AI MIPI Camera Module 4MP IR Enhanced
Product Overview
The SC450AI camera module delivers high-resolution imaging for smart devices, featuring infrared enhancement and exceptional low-light sensitivity. With 2688 × 1520 resolution at 30fps, it provides crisp video performance for diverse applications.
Key Features
- 4MP resolution with smooth 30fps video capture
- Optional 97° field of view lens for wide coverage
- Enhanced low-light performance with 7072 mV/Lux*s sensitivity
- Built-in temperature sensor and multi-sensor synchronization
- Infrared enhancement (850nm/940nm) for night vision
- MIPI interface compatible with multiple platforms
- Ideal for smart home devices, drones, dashcams, and video conferencing
Technical Specifications
| Sensor Model | SC450AI |
| Resolution | 4MP (2688 × 1520 @ 30fps) |
| Pixel Size | 2.9 µm × 2.9 µm |
| Optical Size | 1/1.8" |
| Output Interface | 1/2/4 Lane MIPI, 1/2/4 Lane LVDS, 12/10/8-bit |
| Dynamic Range | >100 dB (WDR), 87 dB (linear) |
| Sensitivity | 7072 mV/Lux*s |
| IR Enhancement | 850nm / 940nm |
| Operating Temperature | -30°C ~ +85°C |
| Module Size | 23.2 × 74.9 mm |
Applications
Supported Platforms
Vous voulez en savoir plus sur ce produit
