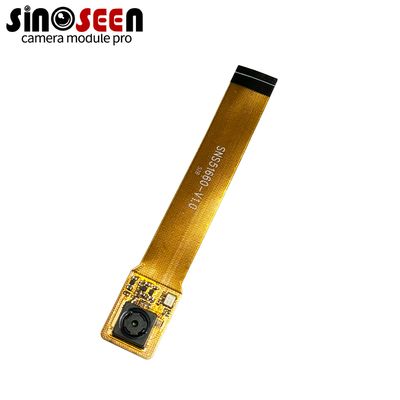

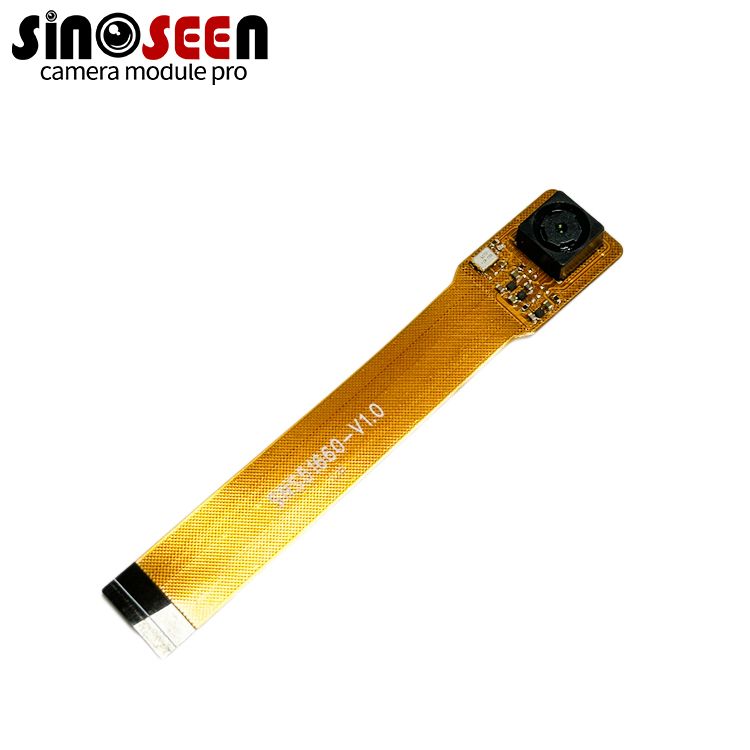

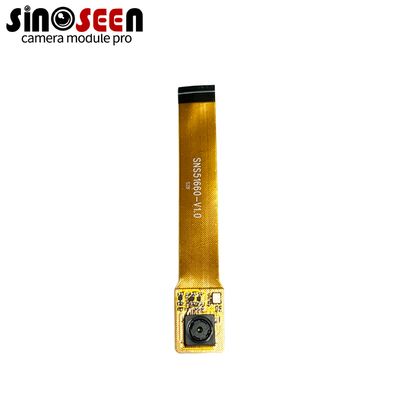

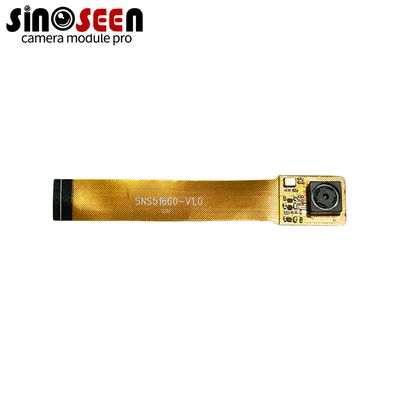

5MP OV5647 Raspberry Pi Camera Module with OmniBSI Technology
Détails sur le produit:
| Lieu d'origine: | Chine |
| Nom de marque: | Sinoseen |
| Certification: | RoHS、ISO9001、CE |
| Numéro de modèle: | Je ne sais pas.0 |
Conditions de paiement et expédition:
| Quantité de commande min: | 5 |
|---|---|
| Prix: | 10-100USD or negotiable |
| Détails d'emballage: | Plateau + sac anti-statique dans la boîte en carton |
| Délai de livraison: | 2-3 semaines |
| Conditions de paiement: | T / t |
| Capacité d'approvisionnement: | 500000 pièces / mois |
|
Détail Infomation |
|||
| Taper:: | Module de caméra de la framboise pi | Capteur: | OV5647 |
|---|---|---|---|
| Résolution: | 1920 * 1080 | Dimensions: | 38 mmx38 mm (compatible avec 32 mmx32 mm) |
| Mettre en évidence: | 5MP Raspberry Pi camera module,OV5647 camera module with OmniBSI,Raspberry Pi camera with warranty |
||
Description de produit
| Attribute | Value |
|---|---|
| Type | Raspberry PI Camera Module |
| Sensor | OV5647 |
| Resolution | 1920×1080 |
| Dimensions | 38mm×38mm (compatible with 32mm×32mm) |
| Highlights | Raspberry PI Camera Module, Machine Vision OV5647 Camera Module |
The OV5647 camera module is purpose-built for Raspberry Pi applications, featuring OmniVision's 1/4-inch 5-megapixel OV5647 sensor. With OmniBSI™ technology, it delivers high sensitivity, low noise, and minimal crosstalk for exceptional imaging quality.
The module supports resolutions up to QSXGA (2592×1944) and full HD 1080p output, making it ideal for embedded vision and digital camera projects.
- Raspberry Pi compatibility for seamless integration
- 5MP resolution with 2592×1944 image output
- OmniBSI™ pixel technology for high sensitivity and reduced noise
- Multiple formats: 8-/10-bit raw RGB output
- Automatic functions: AEC, AGC, AWB for simplified operation
- Supports LED/flash strobe, subsampling, and frame synchronization
We offer customized design services, including lens options, PCB layouts, firmware optimization, and interface adjustments to meet project-specific requirements.
Sinoseen is a leading provider of professional camera modules for industries worldwide. With advanced R&D and manufacturing capabilities, we deliver high-quality, reliable, and customizable imaging solutions.
