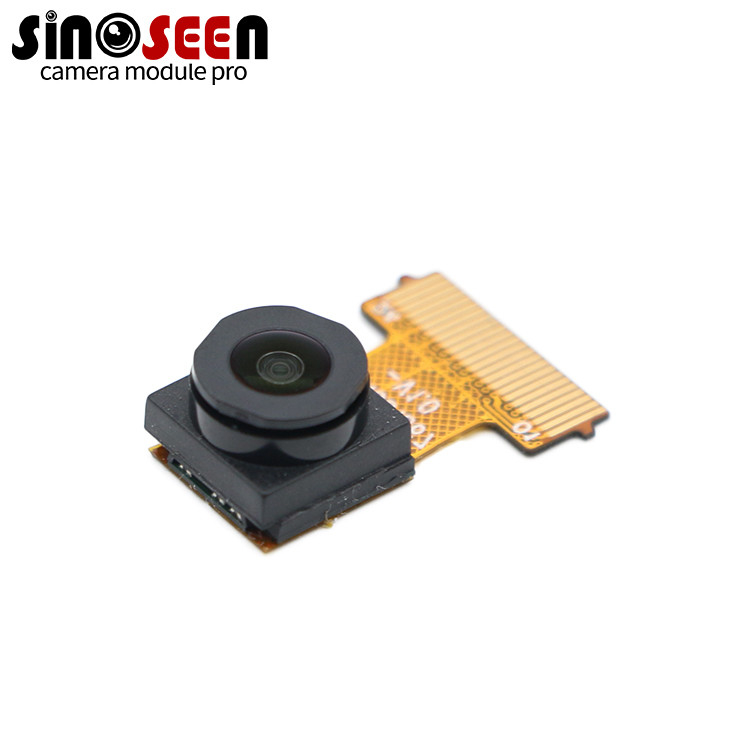

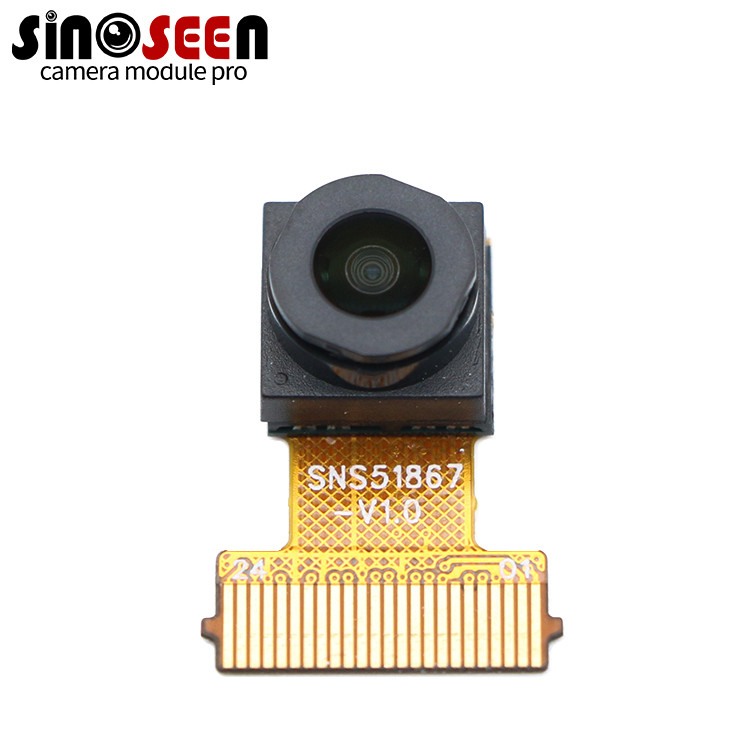

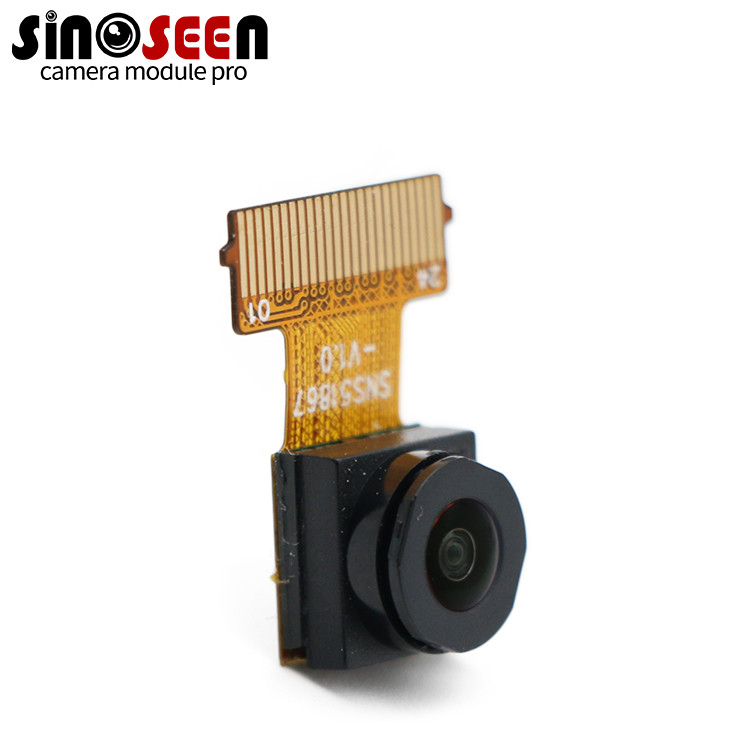

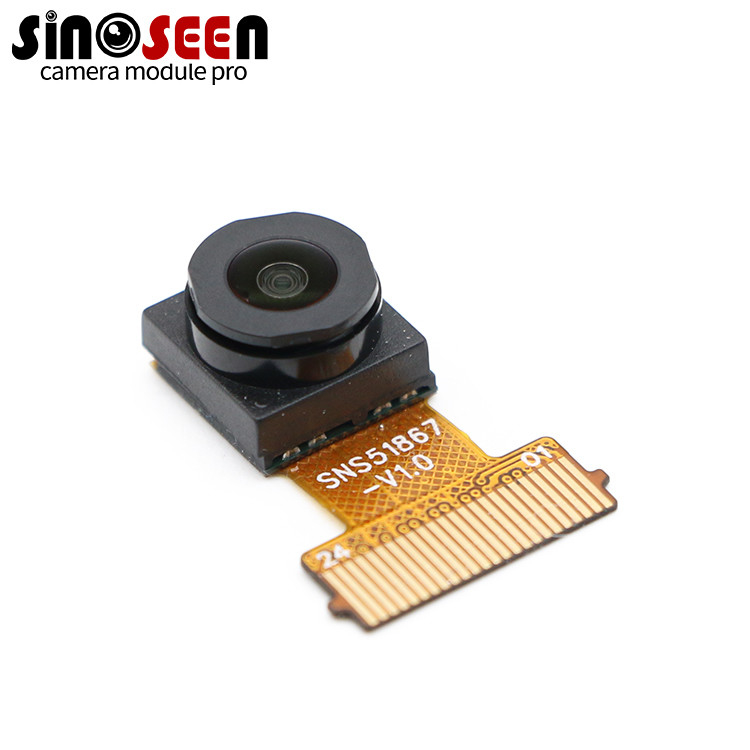

5MP MIPI Camera Module OV5648 Sensor 90FPS for Smartphones Tablets
Détails sur le produit:
| Place of Origin: | Shenzhen,China |
| Nom de marque: | Sinoseen |
| Certification: | RoHS |
| Model Number: | SNS51867-V1.0 |
Conditions de paiement et expédition:
| Minimum Order Quantity: | 3 |
|---|---|
| Prix: | négociable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Détail Infomation |
|||
| Type: | MIPI Camera Module | Sensor: | OV5648 1/4 inch |
|---|---|---|---|
| Resolution: | 5MP 2592*1944 | Dimensions: | Customizable |
| Frame Rate: | 90FPS | Lens FOV: | 125°(optional) |
| Interface: | MIPI | Feature: | low crosstalk and low noise |
| Mettre en évidence: | 5MP MIPI camera module OV5648 sensor,MIPI camera module 90FPS smartphones,OV5648 camera module for tablets |
||
Description de produit
- 5MP HD resolution (2592×1944) for clear, detailed images
- OmniVision OV5648 CMOS sensor with 1/4" optical format
- High-speed 90FPS frame rate for smooth video capture
- MIPI interface for fast data transmission
- Low crosstalk and noise for superior image quality
- 125° wide field of view (optional)
- Fixed focus design for consistent performance
The Sinoseen SNS51867-V1.0 Camera Module delivers exceptional image quality and high-speed performance for smartphones and tablets. Featuring an OmniVision OV5648 CMOS sensor with OmniBSI+ technology, this module provides superior sensitivity and low-light performance while minimizing crosstalk and noise.
| Module | SNS51867-V1.0 |
|---|---|
| Sensor | OV5648 CMOS |
| Resolution | 5MP (2592×1944) |
| Pixel Size | 1.4μm×1.4μm |
| Frame Rate | Up to 90fps (VGA) |
| Focus Type | Fixed focus |
| Interface | 2-lane MIPI |
| Output Formats | 8/10-bit RGB RAW |
| Shutter Type | Rolling shutter |
| Operating Temperature | 0°C to 60°C |
| Supported OS | Windows, Linux, MacOS, Android 4.0+ |
This camera module delivers exceptional performance with maximum frame rates of 15fps at QSXGA, 30fps at 1080p, 45fps at 960p, 60fps at 720p, and 90fps at VGA resolution. The maximum signal-to-noise ratio reaches 34dB for clear, high-quality imaging.
Ideal for smartphones, tablets, and other mobile devices requiring high-quality imaging capabilities. Perfect for HD photography, smooth video recording, and clear video conferencing applications.
