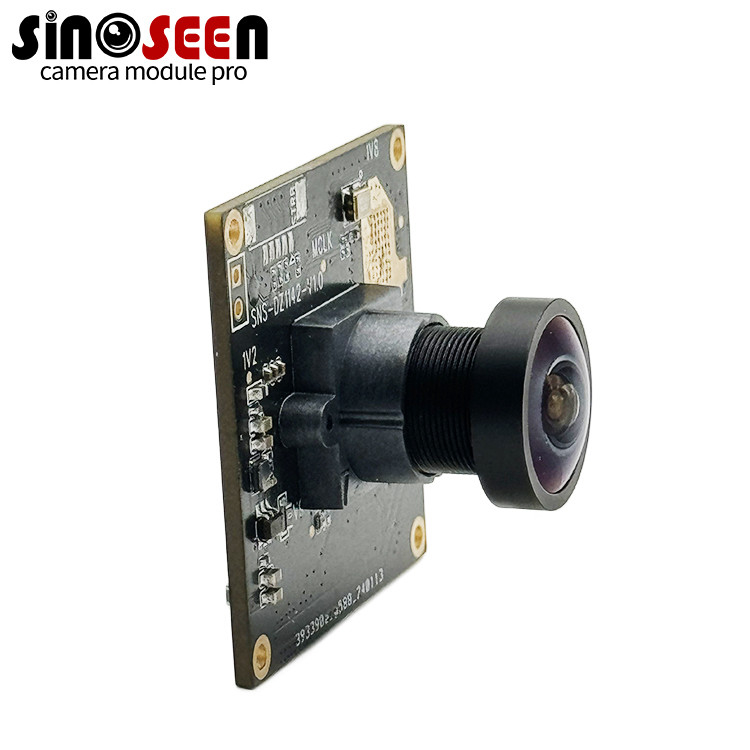

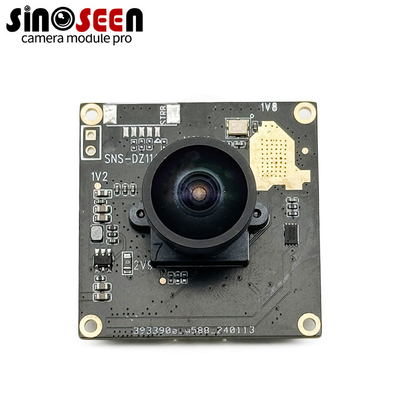

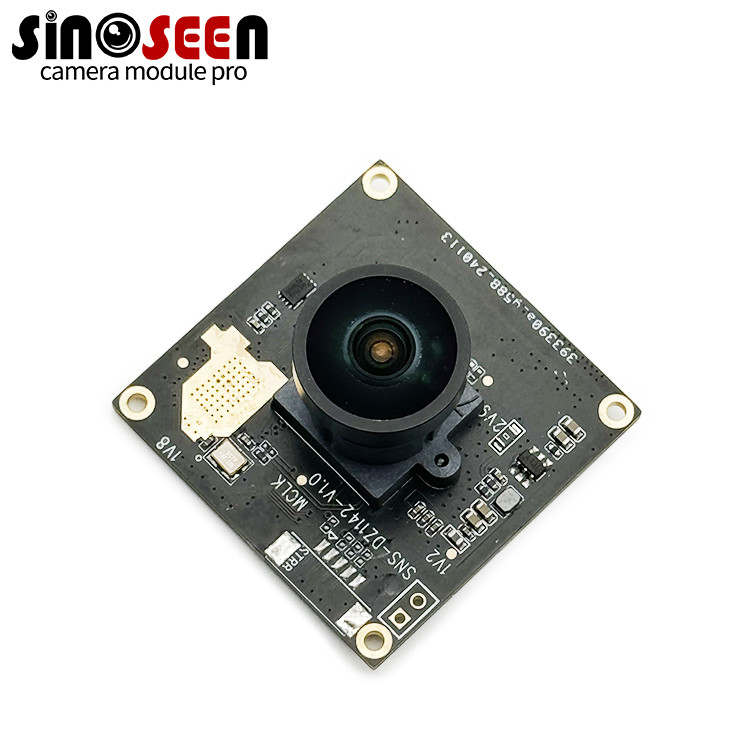

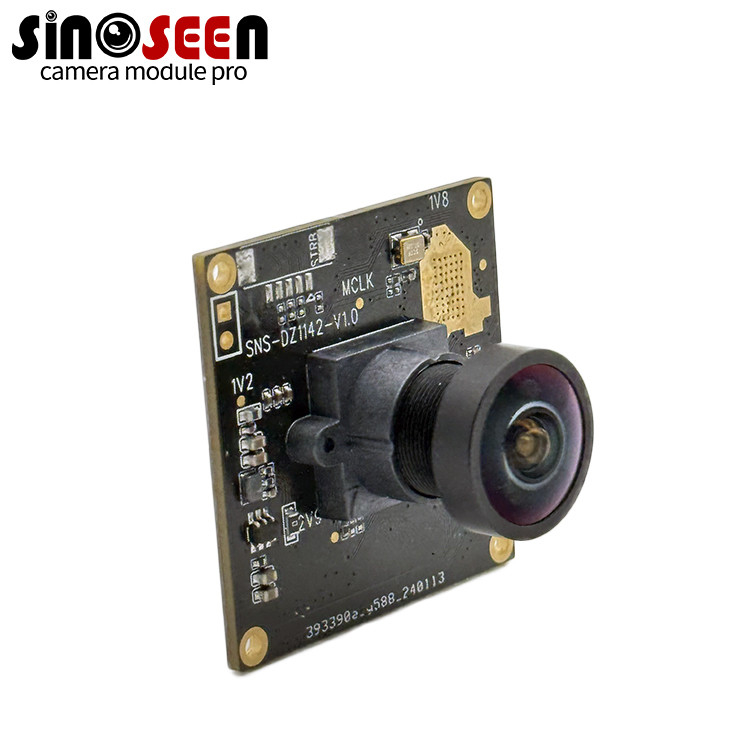

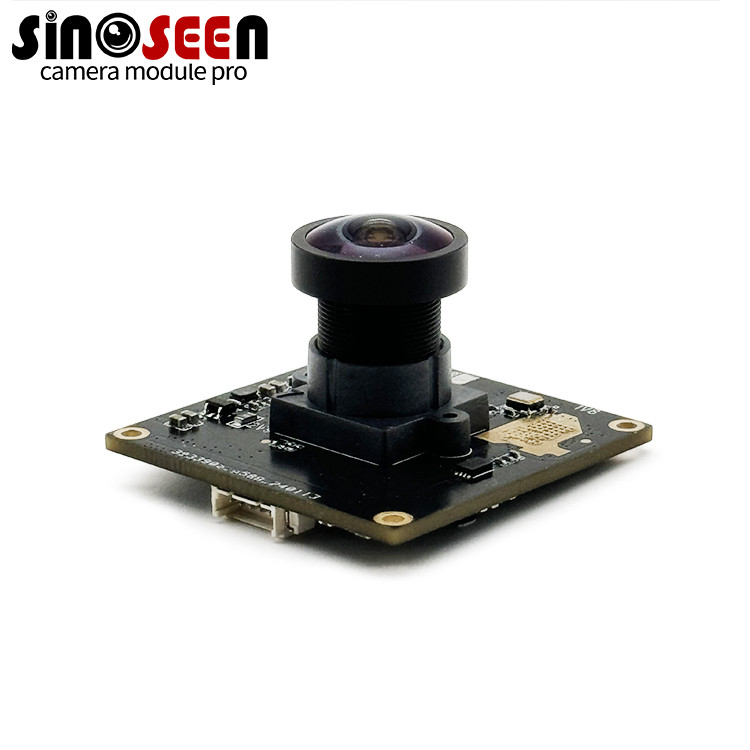

High-Performance USB Camera Module for Demanding Applications with the Sinoseen 1/2.8" CMOS Image Sensor
Détails sur le produit:
| Place of Origin: | China |
| Nom de marque: | Sinoseen |
| Certification: | RoHS |
| Model Number: | SNS-DZ1142-V1.0 |
Conditions de paiement et expédition:
| Minimum Order Quantity: | 5 |
|---|---|
| Prix: | négociable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3week |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Détail Infomation |
|||
| Sensor Size: | 1/2.9 | Color: | Color |
|---|---|---|---|
| Gpu: | Mali-T860 | Sensor Model: | MT9J003 |
| Equipment Size: | 42mm×40mm×10mm(±1mm) | Focal Length: | 3.95mm |
| Lens Type: | Fixed | Video Capture Resolution: | 720P |
| Special Feature: | Low Light | Feature: | HDR |
| Chip Type: | OV5648 | Compatibility: | Windows, Mac, Linux |
| Weight: | 50g | Object Distance: | 1cm-infinite |
| Power Supply: | USB | Input Voltage: | 3-3.6V or 3.6-16V |
| Drive Mode: | Free Diver | Video Format: | MP4 |
| Driving Method: | Drive Free | Focus: | Fixed Focus |
| Format: | MJPG YUY2 | Maximum Effective Pixel: | 1920(H)X1080(V) |
| Keywords: | IP Camera Module | Powered: | DC12V/POE |
| Production Process: | SMT(ROSH) | Module Size: | 93.7*55.0(mm) |
| Operating Voltage: | DC5V | Sensor Type: | CMOS |
| Output Forma: | MJPG/YUY2 | View Angle: | 77.7°±3° |
| Mounting Options: | Clip, Tripod | Uvc Protocol: | USB Video Class（UVC） |
| Operating Temperature: | -10°C to 60°C | Most Effective Pixels: | 3840(H) x 2160(V) |
| Stable Temperature: | 0°C to 50° | Array Size: | 4208x3120 |
| Power Consumption: | About 140mA | Acquisition Speed: | 1/30 fps(E21W) 1/120fps(E21W1) |
| Dimensions: | 50mm x 50mm x 20mm | ||
Description de produit
High-Performance USB Camera Module with 1/2.8" CMOS Image Sensor
Professional Imaging Solution for Demanding Applications
This industrial-grade USB camera module features the Sinoseen 1/2.8" CMOS image sensor, delivering superior imaging performance across diverse application scenarios. Engineered for versatility, it provides Full HD resolution at 1920x1080@30FPS with exceptional clarity in both bright and low-light conditions.
Key Features
- Full HD resolution (1920x1080@30FPS) for detailed imaging
- Low-light optimized performance with HDR capability
- USB 2.0 high-speed interface for rapid data transfer
- Cross-platform compatibility (Windows, Mac, Linux, Android)
- Wide operating temperature range (-30°C to 70°C)
- Compact design (50×50×20mm) with multiple mounting options
Technical Specifications
Sensor Type:
1/2.8" CMOS (MT9J003/OV5648)
Resolution:
1920×1080 (Max 3840×2160 effective pixels)
Frame Rate:
Up to 30FPS at Full HD
Lens:
Fixed focus (3.95mm EFL), 77.7°±3° FOV
Interface:
USB 2.0 (480MB/s), UVC compliant
Power:
5V±5% (≈140mA consumption)
Dimensions:
50×50×20mm (Module: 93.7×55.0mm)
Weight:
50g
Detailed Performance Specifications
| Image Sensor Size | 1/2.8" CMOS |
| Effective Pixels | 1920×1080 |
| Pixel Size | 2.9μm×2.9μm |
| Optical Distortion | < -1% |
| Output Formats | MJPG/YUV (MP4 video) |
| Operating Temperature | -30°C to 70°C |
| Storage Temperature | -20°C to 70°C |
| Lens Specifications | M12×P0.5, 4G construction, F/2.0±5% |
| Focus Range | 60cm to ∞ (manual focus) |
Ideal Applications
- Industrial inspection and quality control systems
- Video conferencing and telepresence solutions
- Educational and presentation displays
- Security and surveillance applications
- Medical imaging devices
- Embedded vision systems
