Find the Perfect Balance of High Resolution and Low-Light Performance with Our USB Camera Module
Détails sur le produit:
| Place of Origin: | China |
| Nom de marque: | Sinoseen |
| Certification: | RoHS |
| Model Number: | SNS-DZ1142-V1.0 |
Conditions de paiement et expédition:
| Minimum Order Quantity: | 5 |
|---|---|
| Prix: | négociable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3week |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Détail Infomation |
|||
| Sensor Size: | 1/2.9 | Color: | Color |
|---|---|---|---|
| Gpu: | Mali-T860 | Sensor Model: | MT9J003 |
| Equipment Size: | 42mm×40mm×10mm(±1mm) | Focal Length: | 3.95mm |
| Lens Type: | Fixed | Video Capture Resolution: | 720P |
| Special Feature: | Low Light | Feature: | HDR |
| Chip Type: | OV5648 | Compatibility: | Windows, Mac, Linux |
| Weight: | 50g | Object Distance: | 1cm-infinite |
| Power Supply: | USB | Input Voltage: | 3-3.6V or 3.6-16V |
| Drive Mode: | Free Diver | Video Format: | MP4 |
| Driving Method: | Drive Free | Focus: | Fixed Focus |
| Format: | MJPG YUY2 | Maximum Effective Pixel: | 1920(H)X1080(V) |
| Keywords: | IP Camera Module | Powered: | DC12V/POE |
| Production Process: | SMT(ROSH) | Module Size: | 93.7*55.0(mm) |
| Operating Voltage: | DC5V | Sensor Type: | CMOS |
| Output Forma: | MJPG/YUY2 | View Angle: | 77.7°±3° |
| Mounting Options: | Clip, Tripod | Uvc Protocol: | USB Video Class（UVC） |
| Operating Temperature: | -10°C to 60°C | Most Effective Pixels: | 3840(H) x 2160(V) |
| Stable Temperature: | 0°C to 50° | Array Size: | 4208x3120 |
| Power Consumption: | About 140mA | Acquisition Speed: | 1/30 fps(E21W) 1/120fps(E21W1) |
| Dimensions: | 50mm x 50mm x 20mm | ||
Description de produit

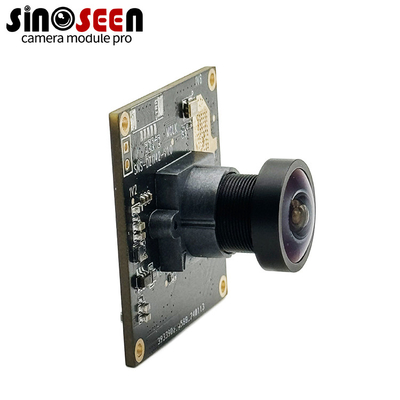

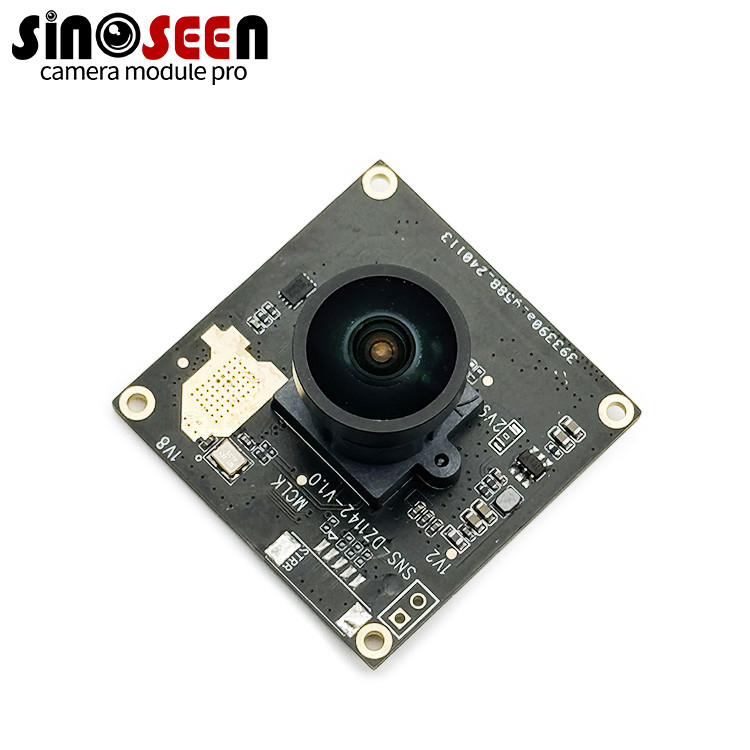

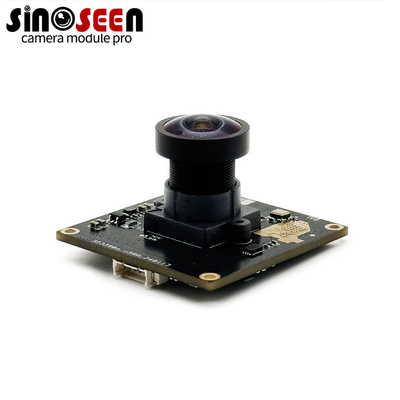

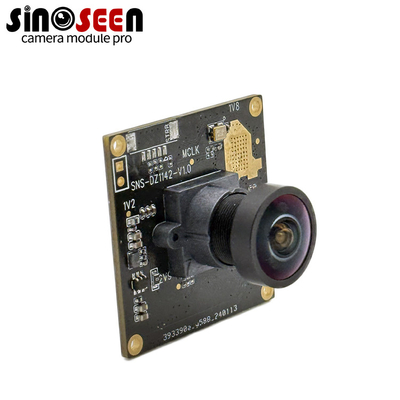

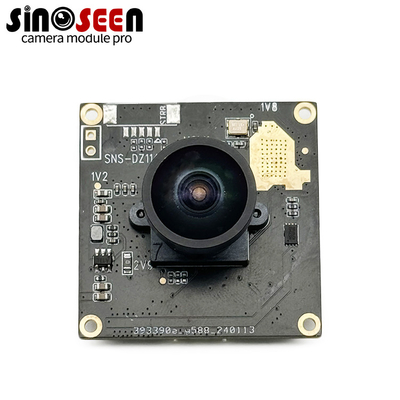

USB Camera Module with High Resolution and Low-Light Performance
Key Features
1/2.9" CMOS sensor for superior image quality
720P video resolution with 30fps smooth output
Exceptional low-light performance with HDR capability
Plug-and-play USB 2.0 interface (480MB/s transfer speed)
Compact 42mm×40mm×10mm design for versatile integration
Wide compatibility with Windows, Mac, and Linux systems
Product Overview
The Sinoseen USB Camera Module delivers the perfect balance of high resolution and low-light performance for professional imaging applications. This advanced 1/2.8" CMOS sensor provides exceptional image quality and color fidelity, making it ideal for video streaming, conferencing systems, surveillance, industrial inspection, and ATM applications.
Technical Specifications
Sensor Size:
1/2.9" CMOS
Sensor Model:
MT9J003
Dimensions:
42mm×40mm×10mm(±1mm)
Weight:
50g
Resolution:
720P (1920×1080)
Frame Rate:
Up to 30fps
Lens Type:
Fixed focus (3.95mm focal length)
View Angle:
77.7°±3°
Power Supply:
USB (5V±5%)
Operating Temp:
-10°C to 60°C
Video Format:
MP4 (MJPG/YUY2)
Interface:
USB 2.0 (UVC protocol)
Detailed Performance Specifications
| Parameter | Value | Remarks |
|---|---|---|
| Effective Pixels | 1920×1080 | |
| Pixel Size | 2.9μm×2.9μm | |
| Optical Distortion | <-1% | |
| Data Output | Raw Data 10bits | |
| Frame Rates | 1920×1080 @30fps 1280×720 @30fps 640×480 @30fps |
MJPG format |
| Digital Interface | 5pin 1.25mm USB2.0 | 1.5m cable length |
| Transfer Rate | 480MB/s | |
| Storage Temperature | -20°C to 70°C |
Lens Specifications
Lens Mount:
M12×P0.5
Construction:
4G
Aperture:
F/2.0±5%
Focal Length:
3.0mm±5%
Field of View:
96°±3°
Focus:
Manual
Focus Range:
60cm to ∞
